Zortrax develops a new composite 3D printing technology

Zortrax has launched its Endureal industrial 3D printer, a machine that processes high-performance composite parts out of two blends of PEEK filament in dual extrusion.

With ESA as first user, the Polish 3D printer manufacturer explains that the first prototype composite parts made out of standard PEEK and experimental electrically conductive PEEK developed by ESA have been successfullyfabricated on the Zortrax Endureal.

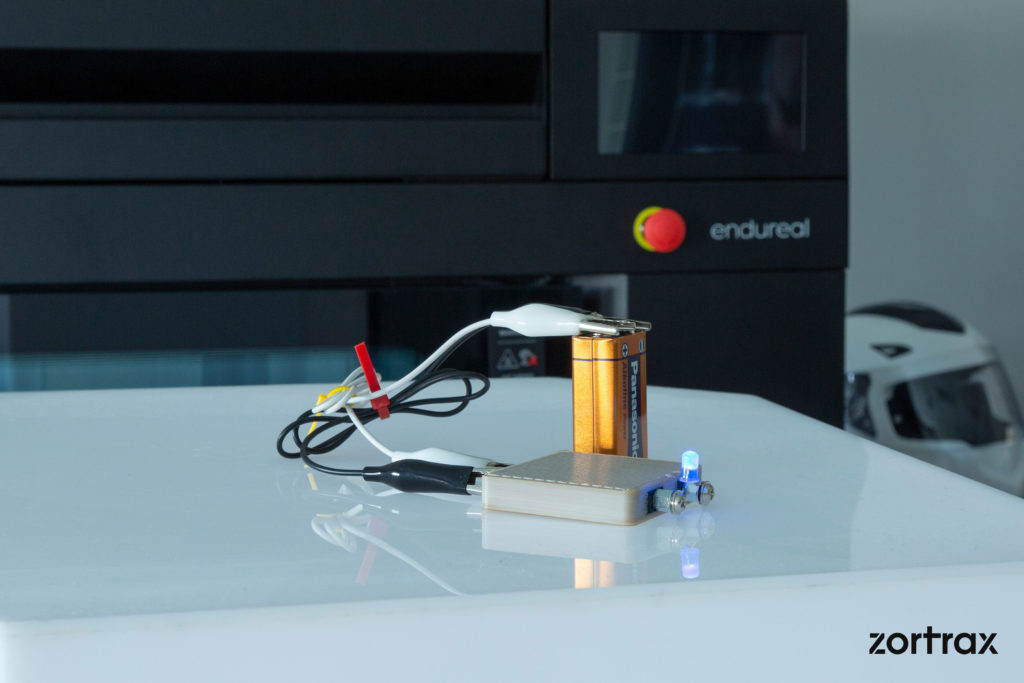

The LPD Plus dual extrusion technology used in the Zortrax Endureal has been traditionally used to print support structures out of different materials than the model itself. However, across the aerospace sector, there is an increasing demand for high end composite parts 3D printed out of two high-performance polymers. This is exactly what has just been achieved. To highlight what is possible with this new solution, Zortrax engineers used ESA’s experimental blend of electrically conductive PEEK in combination with pure PEEK to print proof-of-concept models with simple electricity and data transfer features on the Zortrax Endureal.

Reducing weight is always one of the key design goals in aerospace engineering and it can be done by building parts which serve multiple purposes at once. In a standard airplane or spacecraft, you need to include both structural elements and wiring responsible for transferring energy or data between various systems. That is what we aim to solve with 3D printing PEEK components with electrically conductive paths. This way, the structural parts can at the same time perform electricity or data transfer functions without weight penalty incurred for additional wires. Imagine casting a solid steel slab that also works as a USB connector. That’s what the Endureal can do with high-performance polymers – says Michał Siemaszko, Head of Research and Development at Zortrax S.A.

Printing composite models have been made possible because the Endureal’s impressive specs were bumped even further. Zortrax engineering team managed to increase the rigidity of the extrusion system which translated into even better dimensional accuracy. Other hardware changes resulted in the Endureal’s reaching even higher operating temperatures. The top extrusion temperature now stands at 480 °C. Maximum temperatures in the printing chamber and on the build platform can reach 200 °C and 220 °C, respectively, to further reduce warping and shrinkage of high performance materials. Printing composite parts out of two materials also required innovative changes in both firmware and software.

And this trickling down has already started. All changes and improvements that has been made to the printer’s design to enable dual extrusion 3D printing using pure PEEK and conductive PEEK developed by ESA are already implemented across the board in all commercially available Endureal machines.
The customers can rest assured that the printers they ordered will come ready to print composite models after a simple software update when the technology reaches production level.
