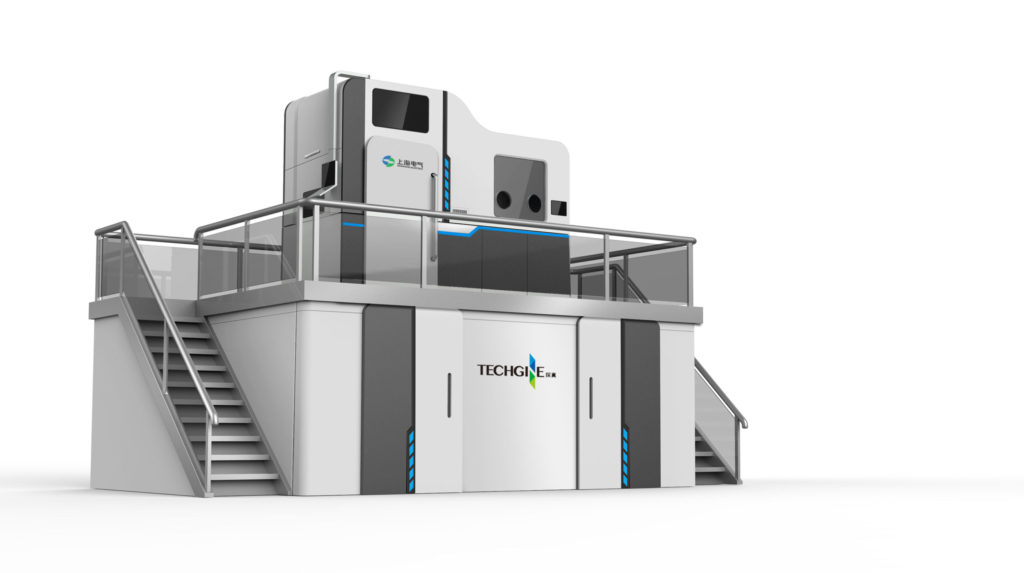

TECHGINE TZ-SLM500

TECHGINE TZ-SLM500

The technical team has made a reakthrough in the idea of existing single beam selective laser melting and is the first to propose four beams scanning in the world, which is a new method of additive manufacturing. It is able to achieve large size, high deposition efficiency and high precision while guaranteeing the quality of parts.
TS500 is in the front ranking the world for is dimensions and efficiency of manufactured parts by SLM process. The machine owns the full set of intellectual property rights.

TECHNICAL SPECIFICATION

Machine size : 6700 x 2500 x 4600 mm
Build size : 500 x 500 x 1000 mm
Laser power : 4 x 500 W or 4 x 1000 W fiber laser
Recoating mechanism : Bidirectional recoating
Build rate : 80-200 cm3/h
Precision optics : ± 0.05 mm
Focus diameter : 100 μm
Oxygen level : ≤ 100 ppm
Substrate pre-heating : 200°C
Materials : Titanium / Aluminium / Stainless steel / High-strength steel

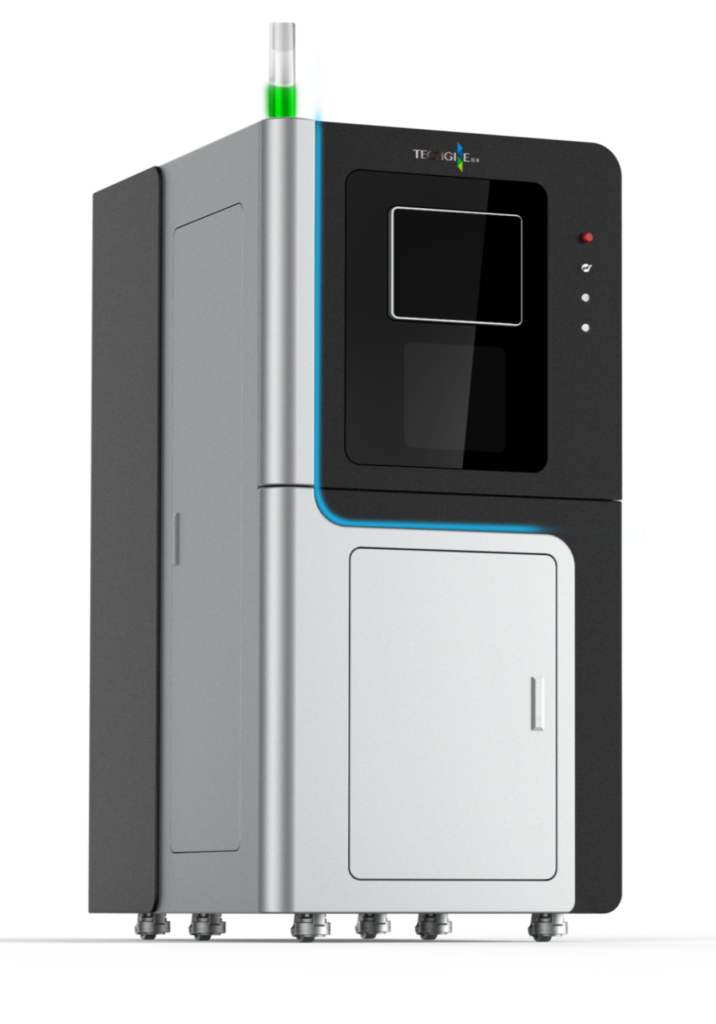

TECHGINE TZ-SLM120A

The TS120 is a cost-effective and compact industrial grade metal 3D printing solution.
Compact and flexible, the product exceeds the requirements of conventional equipment in the market. The user-friendly control console simplifies the operation. It is a new generation of equipment specific to medical, digital education and digital design.

Technical specifications

Machine size : 950 x 1350 x 2000 mm
Build size : Ø 120 x 100 mm (D x h)
Laser power : 200 W or 500 W fiber laser
Recoating mechanism : Uplifting powder
Build rate : 1-35 cm3/h
Precision optics : ± 0.05 mm
Focus diameter : 40-120 μm
Oxygen level : ≤ 100 ppm
Materials : Titanium / Aluminium / Stainless steel / High-strength steel, …

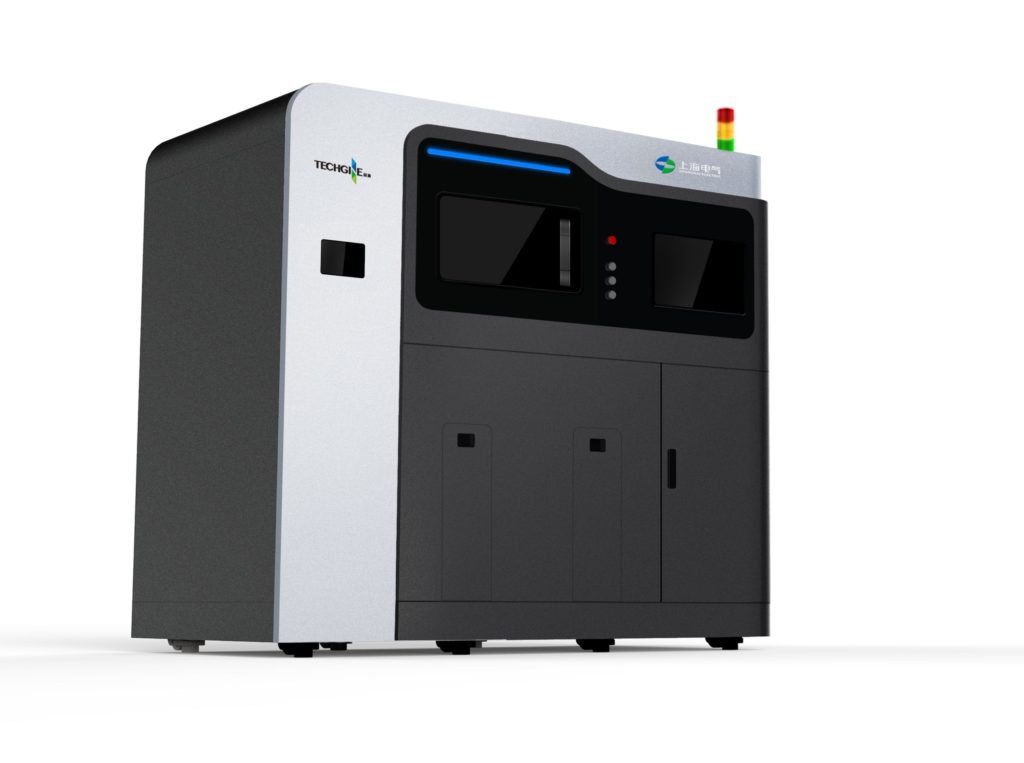

TECHGINE TZ-SLM300A

The product is the result of design iteration. It is reliable and wide applicable, alowing to achieve very complex and precise structures on a large scale. The control software
has a mature database of multi
materials and can be used to developped the own process parameters of the customers.

Technical specifications

  • Machine size : 2250 x 1200 x 2050 mm
  • Build size : 250 x 250 x 300 mm
  • Laser power : 500 W
  • Recoating mechanism : Bidirectional recoating
  • Build rate : 3-35 cm3/h
  • Precision optics : ± 0.05 mm
  • Focus diameter : 100 µm
  • Oxygen level : ≤ 100 ppm
  • Substrate pre-heating : 200°C
  • Materials : Titanium / Aluminium / Stainless steel / High-strength steel, …
